Build a Broom and Mop Holder for the Shop Wall
A push broom, a shop broom, a dustpan, and a mop all need a home in the shop – and leaving them propped against the wall means they fall over, get in the way, and become obstacles during cleanup. A simple wall-mounted holder puts every cleaning tool in a vertical, space-efficient position with no floor footprint. This is a 30-minute project from scrap materials that improves the tidiness of the shop in a disproportionate way.
Materials
- 1×4 or 1×6 board, 24 to 36 inches long
- Spring clips or rubber tool holders (available at hardware stores)
- Wood screws for wall mounting
- Optional: a horizontal bar for hanging dustpans and similar flat items
Step 1 – Inventory Your Cleaning Tools
Count every cleaning tool: push broom, shop broom, dustpan, floor squeegee, mop, broom handle tools, and any others. Note handle diameters. Most push brooms and shop brooms have 1-inch diameter handles; spring clips are available in this size at any hardware store.

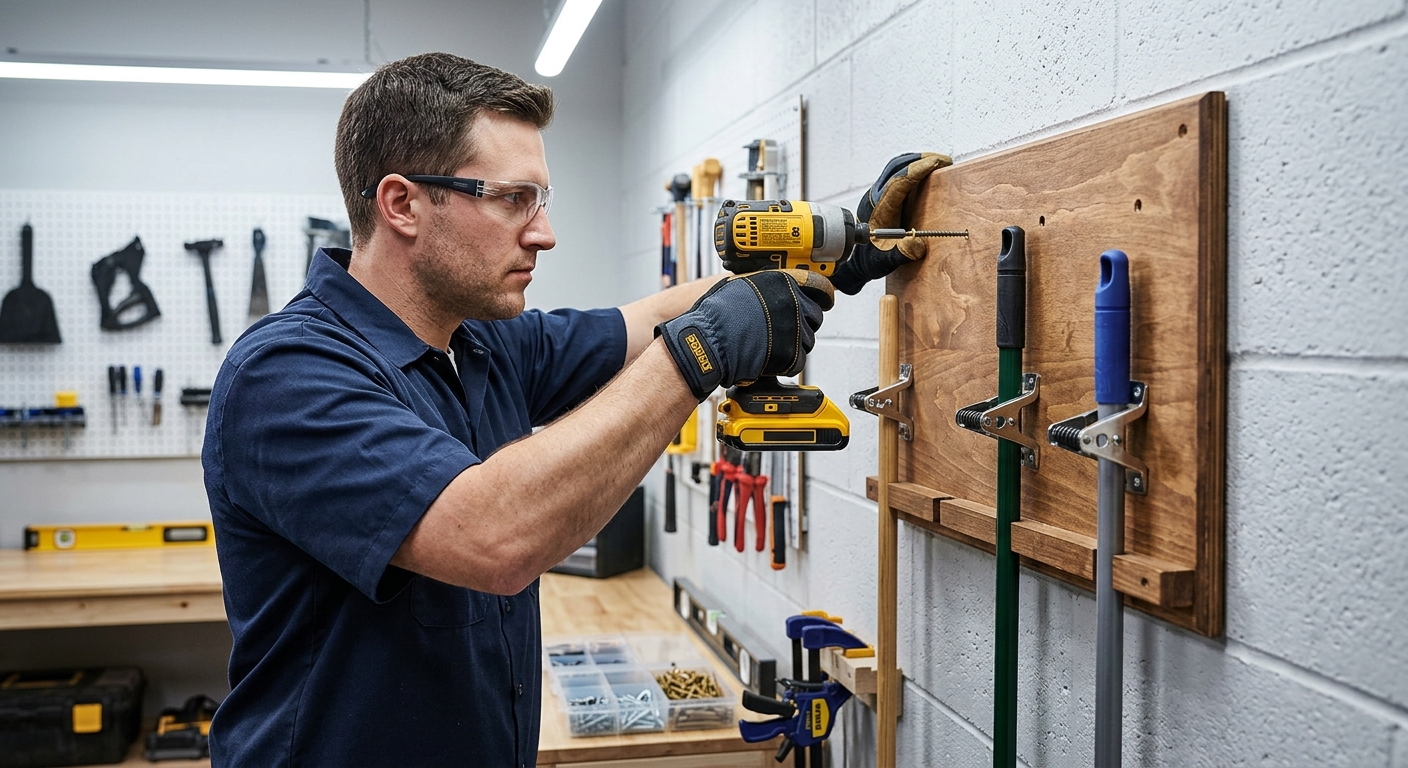

Step 2 – Mount the Board
Mount the 1×4 board horizontally at 60 to 72 inches from the floor – high enough that handles clear the floor by several feet when clipped in, but not so high you need to reach overhead to retrieve them. Use two lag screws into studs, or use appropriate drywall anchors if no stud is available at the ideal location.
Step 3 – Attach the Clips
Attach spring clips at 6 to 8-inch spacing along the board. Each clip holds one broom or mop handle. To use: press the handle against the clip until the spring catches. To release: push the spring catch aside and pull the handle out. Each clip holds firmly even under a shaking tool, but releases easily with one motion.

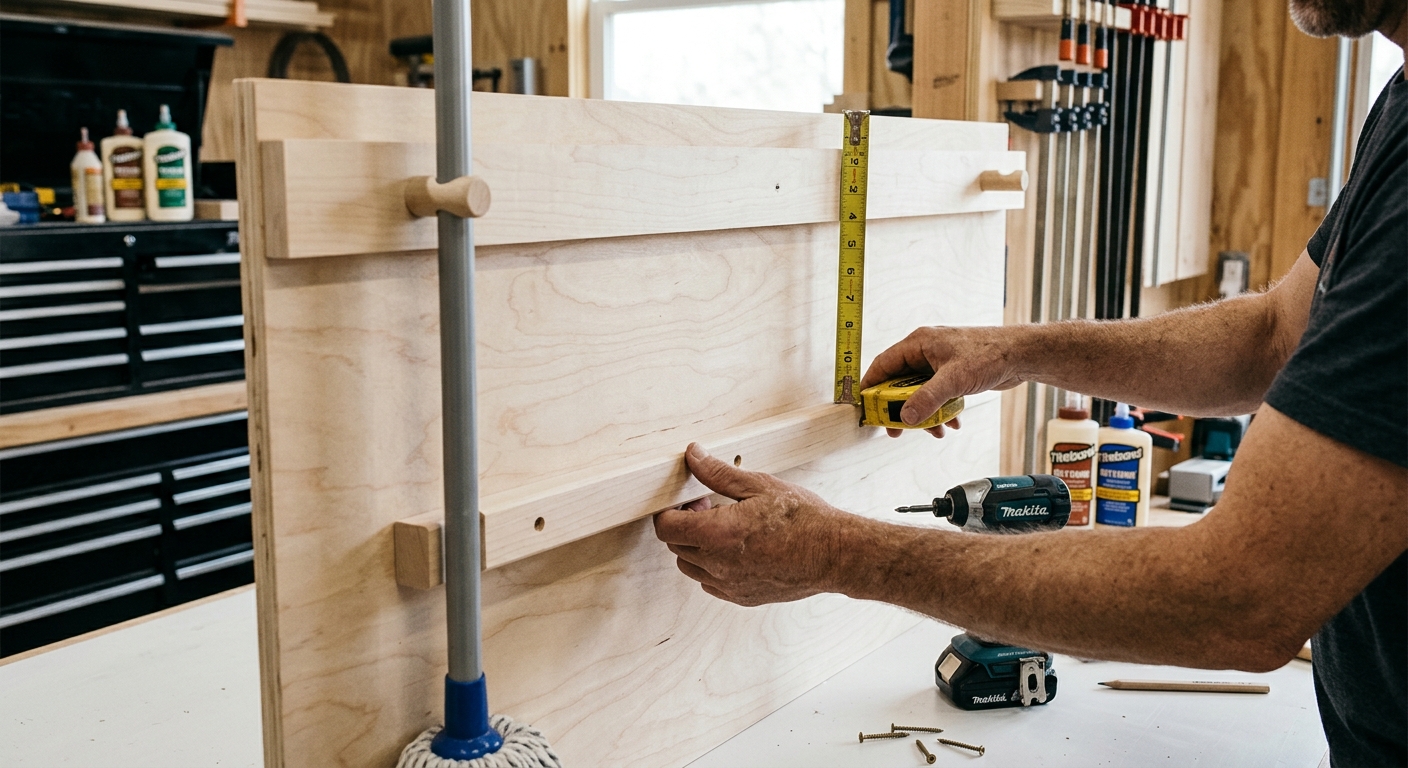

Step 4 – Add a Dustpan Rail
A 1/2-inch dowel mounted below the clip board provides a horizontal rail for hanging dustpans, floor squeegees, and similar flat tools from their hanging holes. Drill the dowel through two supporting blocks attached to the main board, so the dowel projects 2 to 3 inches from the board face.
Pro Tips
- Position the holder near the shop exit – the broom goes back immediately after sweeping, not after a detour across the shop. Convenience drives compliance with the “put it back” habit.
- A separate hook for a shop apron or dust mask at the end of the holder completes the “clean up and gear up” station that makes end-of-session cleanup habitual.
FAQ
Are spring clips strong enough for a heavy push broom?
Yes. Spring clips rated for brooms typically hold up to 10 to 15 pounds, which is more than any broom weighs. The limiting factor is usually the mounting – lag screws into studs hold much more weight than drywall anchors.
Can I use this system for shop vacuums and hoses?
A separate hose hook (a large S-hook on a cleat or a dedicated wall bracket) works better for shop vacuum hoses – they’re too large in diameter for spring broom clips. Coil the hose in a loop and hang it on a large hook or a dedicated reel.
